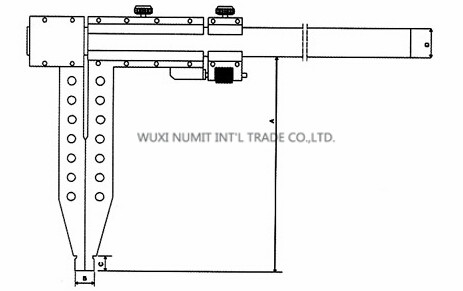

ST181 Long jaw vernier calipers,level measurement instruments,stainless steel caliper
Product Description
Item No.
(Stainless Steel) |
Item No.
(Carbon Steel) |
Range
(mm) |
Vernier
(mm) |
| ST181S-506 |
ST181C-506 |
0-800 |
0.05 |
| ST181S-206 |
ST181C-206 |
0.02 |
| ST181S-606 |
ST181C-606 |
0-800/0-32" |
0.05/1/128" |
| ST181S-806 |
ST181C-806 |
0.02/0.001" |
| ST181S-507 |
ST181C-507 |
0-1000 |
0.05 |
| ST181S-207 |
ST181C-207 |
0.02 |
| ST181S-607 |
ST181C-607 |
0-1000/0-40" |
0.05/1/128" |
| ST181S-807 |
ST181C-807 |
0.02/0.001" |
| ST181S-508 |
ST181C-508 |
0-1500 |
0.05 |
| ST181S-208 |
ST181C-208 |
0.02 |
| ST181S-608 |
ST181C-608 |
0-1500/0-60" |
0.05/1/128" |
| ST181S-808 |
ST181C-808 |
0.02/0.001" |
| ST181S-509 |
ST181C-509 |
0-2000 |
0.05 |
| ST181S-209 |
ST181C-209 |
0.02 |
| ST181S-609 |
ST181C-609 |
0-2000/0-80" |
0.05/1/128" |
| ST181S-809 |
ST181C-809 |
0.02/0.001" |
| ST181S-510 |
ST181C-510 |
0-2500 |
0.05 |
| ST181S-210 |
ST181C-210 |
0.02 |
| ST181S-610 |
ST181C-610 |
0-2500/0-100" |
0.05/1/128" |
| ST181S-810 |
ST181C-810 |
0.02/0.001" |
| ST181S-511 |
ST181C-511 |
0-3000 |
0.05 |
| ST181S-211 |
ST181C-211 |
0.02 |
| ST181S-611 |
ST181C-611 |
0-3000/0-120" |
0.05/1/128" |
| ST181S-811 |
ST181C-811 |
0.02/0.001" |
| ST181S-512 |
ST181C-512 |
0-4000 |
0.05 |
| ST181S-212 |
ST181C-212 |
0.02 |
| ST181S-513 |
ST181C-513 |
0-5000 |
0.05 |
| ST181S-213 |
ST181C-213 |
0.02 |
| ST181S-514 |
ST181C-514 |
0-6000 |
0.05 |
| ST181S-214 |
ST181C-214 |
0.02 |
The vernier, dial, and digital calipers give a direct reading of the distance measured with high accuracy and precision. They are functionally identical, with different ways of reading the result. These calipers comprise a calibrated scale with a fixed jaw, and another jaw, with a pointer, that slides along the scale. The distance between the jaws is then read in different ways for the three types.
The simplest method is to read the position of the pointer directly on the scale. When the pointer is between two markings, the user can mentally interpolate to improve the precision of the reading. This would be a simple calibrated caliper; but the addition of a vernier scaleallows more accurate interpolation, and is the universal practice; this is the vernier caliper.
Vernier, dial, and digital calipers can measure internal dimensions (using the uppermost jaws in the picture at right), external dimensions using the pictured lower jaws, and in many cases depth by the use of a probe that is attached to the movable head and slides along the centre of the body. This probe is slender and can get into deep grooves that may prove difficult for other measuring tools.
The vernier scales may include metric measurements on the lower part of the scale and inchmeasurements on the upper, or vice versa, in countries that use inches. Vernier calipers commonly used in industry provide a precision to 0.01 mm (10 micrometres), or one thousandth of an inch. They are available in sizes that can measure up to 1,829 mm (72 in)

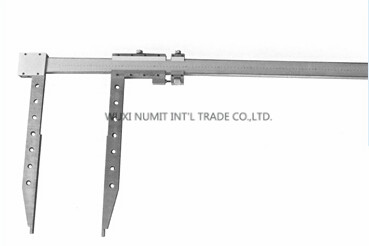

Product photographs
Company Information
Wuxi Numit IntĄŻL Trade Co.,LTD was a comprehensive manufacturing-trading ,import & export company which was established in 1998, specialized in magnetic & precision tools, machinery manufacturing, automobile parts.

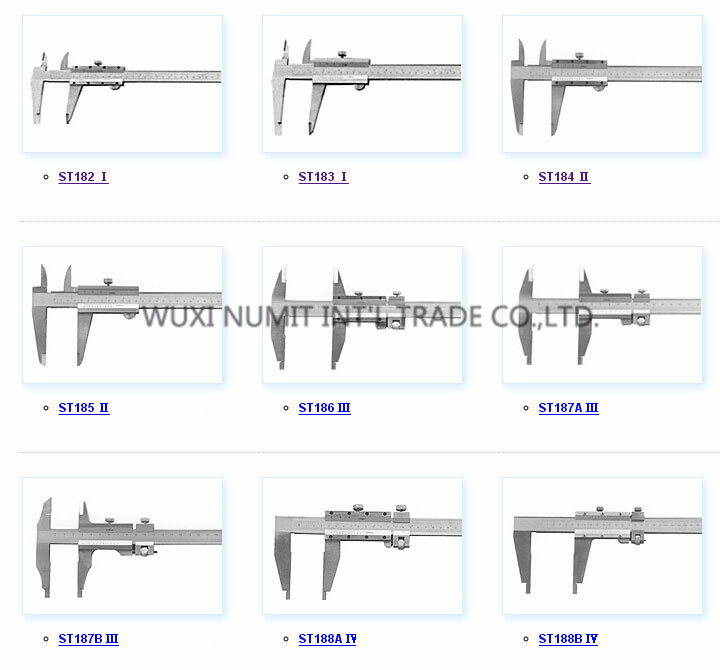

Featured products:
- Precision Digital Caliper
- Electronic Digital Caliper
- Stainless Steel Caliper
- Magnetic Base Stand
- Digital Outside Micrometer
- Digital Height Gauge
- Dial Indicator Gauge
- Magnetic Hooks
The products won a high quality prize and influence at home and abroad after being exported to many countries such as Europe, America and Southeast Asia ,etc.
Numit has complete kinds of high-quality products which has passed DIN, JIS ,CE for different customers to choose ,and also has a large good service network and professional international transportation such as Sinotrans,MSK,APL,MSC,FWSC,MOSK,FESCO.
Numit provides services with sincere attitude, high-quality products and complete after-sales guarantee.
We are looking forward to cooperate with you and develop a win-win future.
Packaging & Shipping
Our Advantages
1>Small MOQ, 50pcs is ok, usually sample is available.
2>Support OEM & ODM: we can print logo or customs package according to our clientĄŻs requirement.
3>Top quality: we have professional QC team to control the quality.
4>Fast delivery: over 100 workers ensure that we can send goods in 5-7 days after payment.
5>We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by
air or by sea.
6>Excellent service: we treat clients as friends and 24 hours customer service.

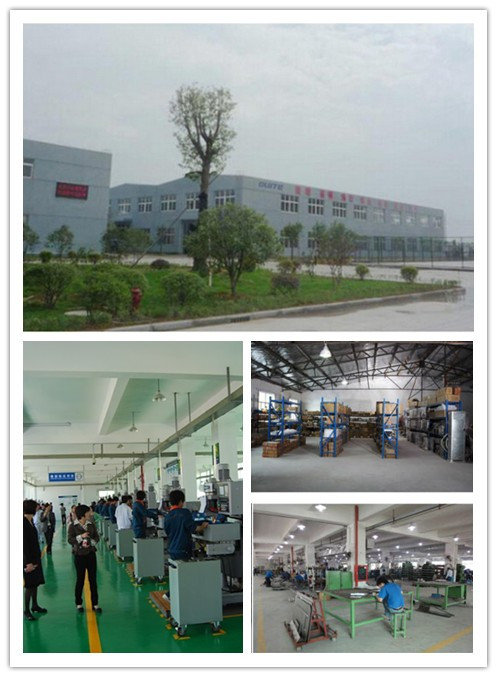

Welcome to visit our factory
